You can now repair cracks and spalls to a smooth finish in a fraction of the time it takes with ordinary products. Roadware 10 Minute Concrete Mender is a revolutionary new two-part hybrid urethane for repairing concrete. It is nearly water-thin for deep penetration, and it won’t pop out like epoxy because it never gets brittle.
What makes Roadware 10 Minute Concrete Mender different from other concrete repair products?
Roadware 10 Minute Concrete Mender™ is a two-part polyurethane that penetrates deep into concrete to make permanent repairs. Nearly thin as water at less than 9cps, Concrete Mender™ actually injects itself into the matrix of the concrete and shores up the existing concrete as well as making the repair. Concrete Mender™ eliminates the bond line as it Microdowels into the concrete. We call it Microdowling™.
Permanent repair in just 10 minutes. Concrete Mender™ cures quickly to a durable 4500psi polymer concrete that effectively transfers heavy loads throughout the repaired area, eliminating pop-outs.
Cures in just 10 minutes at 70°F (21°C) • Works in freezers below -20°F (-28°C) • May be polished • Never gets brittle • Easily applied • Contains no epoxy or polyurea • Easy to mix • Nonflammable • Low V.O.C’s • Paintable • Coatable • Sandable • Meets USDA guidelines • And more…
Needle tip mixes are available.
For precise application. Choose from 14, 15 or 18 gauge.
Full-depth crack injection is possible without pumps or ports. The easy-to-use soft-tip injection mixers make this process efficient.
Bulk mix application for larger cracks and spalls is available in one-gallon containers in two-gallon kits. Simply add sand and mix by hand. Ten-gallon kits are also available.
To extend with sand, mix one gallon of Concrete Mender™ with 2 parts silica sand to create approximately 2.2 gallons of repair material. This yields twice the amount compared to epoxy or polyurea. Please refer to our Product Estimator for more details.
Freezer Floors
Repair concrete at working freezer temperatures below -20°F (-28°C).
Grind, polish, and coat. Accepts polishing or most coating systems in about 10 minutes at 70°F (21°C)
Roadware 10 Minute Concrete Mender double in volume with combined with two parts 4030 manufactured sand.
“The key is in the surface tension,” states Kelton Glewwe, the Marketing Vice President. “With a surface tension just one-third that of water, Concrete Mender penetrates deep into concrete surfaces, effectively anchoring itself in millions of micro fractures within cracked concrete. We term this innovative process Microdoweling™, a unique feature exclusive to Concrete Mender™. This remarkable phenomenon can be observed using an electron microscope. A comprehensive report is available on the Roadware website for further details.” Top experts in the concrete industry agree and recommend Roadware 10 Minute Concrete Mender™ for repairs at leading retailers such as Wal-Mart, Home Depot, Lowe’s, Menards, Target, Honda, Boeing, Costco, Best Buy, and many others. “Wherever durability and reliability are crucial for floors, industry experts choose to rely on Roadware 10 Minute Concrete Mender™.”
Roadware 10 Minute Concrete Mender™ has a proven track record of repairing shrinkage cracks and spalls in elevated structures such as parking decks, bridges, and airport terminals. Concrete Mender™ is recognized as a structural polyurethane and can be applied where the surrounding concrete is stable.
Structural Polyurethane – This polyurethane-based material is designed to restore the structural integrity and aggregate interlock of distressed concrete. It does this by utilizing low surface tension and low viscosity to penetrate concrete surfaces. The polymer chains in this material cross-link and bond directly to the concrete-aggregate matrix. This bonding process utilizes capillary forces to help self-inject polymer chains into the surrounding concrete. The structural polyurethane should have a modulus of elasticity that is lower than that of the surrounding concrete and must not become brittle over time. Furthermore, this material can be combined with manufactured sand to create a polymer concrete that is compatible with Portland Cement Concrete (PCC), which can be used for structurally repairing concrete cracks and spalls.
Advantages – Due to the very low surface tension and low viscosity of the material, complete saturation bonding of cracks can be easily achieved. Minimal preparation, such as removing loose debris, is usually all that is required. This can be considered a structural repair if the material is allowed to gravity flow to the full depth of the crack. Manufactured sand or quartz may be introduced into the repair as necessary to prevent under-slab ponding and material waste. For repairs greater than 0.125 inches, specified sand may be added at a ratio of two parts sand to one part mixed polyurethane as the crack is filled to extend the material and enhance strength. The sand also helps align the thermal coefficient of expansion of the repair material with that of the surrounding concrete. Polyurethanes of this nature can be applied across a wide range of substrate temperatures, making them beneficial for frozen and cold storage warehouse applications or cold weather settings below -20F (-23C). Repairs are typically ready to accept traffic in about 10 minutes at 72F (22C).
Limitations – The surrounding concrete must be surface dry and cured for at least 60 days. Finished repairs may “yellow” in appearance over time when exposed to UV sunlight. In outdoor conditions, only low to non-movement cracks should be repaired.
“Roadware Easy Injection and needle tip crack injection costs less to install and is more effective than pressure applied epoxy injection methods.” according to top concrete repair contractors. “We can get in, permanently repair the cracks, and get out in the same time it use to take just to install the old injection ports.”

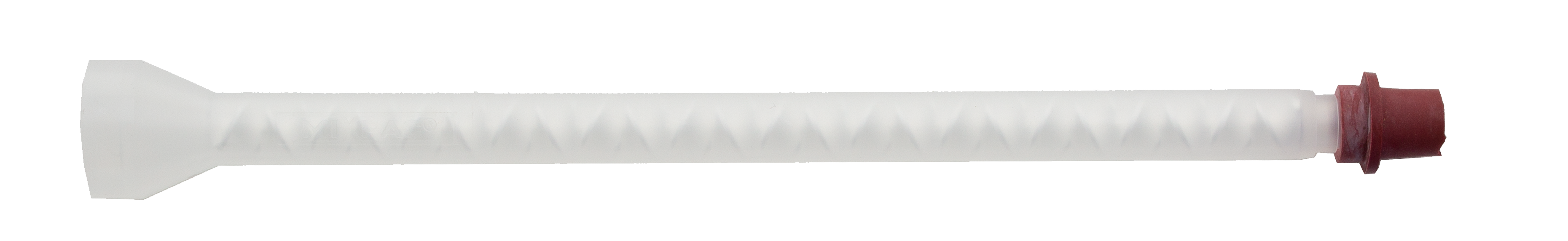

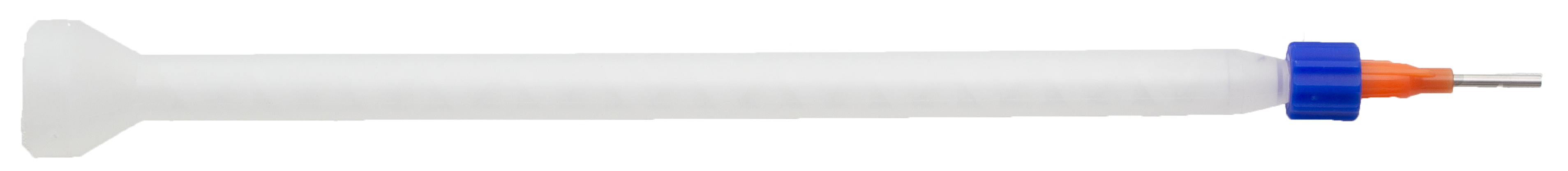

Roadware 1006-15 Static Mixer 24 element with 15 gauge needle application tip.Roadware 1006-STR Static Mixer 24 element with 3/8″ soft Easy-injection tip.
Use Roadware needle tip injection to repair hairline cracks in concrete floors.Roadware 10 Minute Concrete Mender with Easy-injection mixer repairing a hairline crack.The core sample shows full depth repair down 24 inches.
Bridge maintenance crews in West Virginia are using Roadware 10 Minute Concrete Mender to repair hairline cracks in bridge decks. Concrete Mender is a high-performance, rapid-curing concrete repair product designed to restore structural integrity and prevent further deterioration. It is specially formulated to bond well with existing concrete and withstand harsh environmental conditions. Applied with … Continue reading Quick Concrete Solutions for Bridge Maintenance→
Using Roadware 10 Minute Concrete Mender. Remove loose material and create a shelf on both sides of the joint with a minimum profile of 1.5” deep and 2” wide on each side. Vacuum and thoroughly remove dust and contaminates. Create a repair base by filling repair area halfway to grade with bulk mixed 10 Minute … Continue reading Heavy Duty Contraction Joint Rebuild Application For High Traffic Areas→
Here is the Roadware Concrete Mender One Page Pitch. Things you need to know when considering, recommending, specifying, and using Roadware 10 Minute Concrete Mender™ Download the PDF here:
Roadware stands ready to supply immediate concrete repair needs for warehouses, cold chain logistics, manufacturing, and supply. Repairs can be made with almost no downtime and under operational conditions. Please call 1-800-522-7623 or 1-651-457-6122 to be connected with our worldwide network of distributors waiting to assist. Or, send email to sales@concretemender.com We ask that visitors … Continue reading COVID19 Operations→
For many years, engineers have looked for ways to fully inject repair polymers into cracked concrete structures. The general consensus is to seal off the crack with a sacrificial epoxy and install injection ports every few inches. Then thick epoxy is injected under high pressure into the crack with expensive resin injection pumps. The process … Continue reading Full Depth Crack Injection with Concrete Mender.→
What do you do when your pool has cracks and spalls and it has to be open is three days? Back in 2001, the City of South Saint Paul, Minnesota had a problem with their new splash pool. Just before opening the pool for its second season, cracks and spalls were discovered in the concrete … Continue reading Swimming Pool Repair with Concrete Mender→
The Milan-Malpensa MXP International Airport in Ferno, Italy handles nearly 20 million passengers per year and over 500,000 tons of international freight annually. Crews are using Roadware 10 Minute Concrete Mender™ to repair cracks in taxiways. The deep penetration of Concrete Mender and the 10 minute cure helps keep the historic airport running at top … Continue reading Crack repair at the Milan-Malpensa Airport (MXP)→
Project Update: Almost 7 years after application, this Roadware 10 Minute Concrete Mender™ and MatchCrete™ Clear repair still looks good. Roadware Hoover Dam Demonstration Project Use Roadware 10 Minute Concrete Mender and MatchCrete™ Clear to make decorative and color matching repairs. 1) Top of dam shows various cracks. 2) Damage is built up with … Continue reading Hoover Dam Demonstration Project Update→
Roadware 10 Minute Concrete Mender™ is a two-part polyurethane that penetrates deep into concrete to make permanent repairs. Nearly thin as water at less than 9cps, Concrete Mender™ actually injects itself into the matrix of the concrete and shores up the existing concrete as well as making the repair. Concrete Mender™ eliminates the bond line as it Microdowels into the concrete. We call it Microdowling™.
Permanent repair in just 10 minutes. Concrete Mender™ cures quickly to a durable 4500psi polymer concrete that effectively transfers heavy loads throughout the repaired area, eliminating pop-outs.
Cures in just 10 minutes at 70°F (21°C) • Works in freezers below -20°F (-28°C) • May be polished • Never gets brittle • Easily applied • Contains no epoxy or polyurea • Easy to mix • Nonflammable • Low V.O.C’s • Paintable • Coatable • Sandable • Meets USDA guidelines • And more…
Self-mixing at point of application.
Full-depth crack injection is possible without pumps or ports. The easy-to-use soft-tip injection mixers make this process efficient.
Bulk mix application for larger cracks and spalls is available in one-gallon containers in two-gallon kits. Simply add sand and mix by hand. Ten-gallon kits are also available.
To extend with sand, mix one gallon of Concrete Mender™ with 2 parts silica sand to create approximately 2.2 gallons of repair material. This yields twice the amount compared to epoxy or polyurea. Please refer to our Product Estimator for more details.
Freezer Floors
Grind, polish, and coat. Accepts polishing or most coating systems in about 10 minutes at 70°F (21°C)
Needle tip mixes are available.
